THE quarries of Scotland
contribute largely to the wealth of the country, and afford employment to a
great number of persons. Centuries ago, when the danger and inconvenience of
wooden and thatched houses came to be generally felt, more substantial
materials began to be used in the construction of dwellings. At first loose
stones were collected by the builders, and when the supply of these became
exhausted the unbroken beds of rock were drawn upon. Quarrying then became a
trade, and has since gone on extending and increasing in importance. In most
quarters of Scotland sandstones and granites well adapted for building
purposes exist, and the result is that no country in the world can show more
substantial houses than those occupied by the great body of the people north
of the Tweed. The produce of the granite quarries of Scotland is famous both
in England and abroad; no finer paving-stones exist than those obtained in
the counties of Caithness and Forfar; and the slates of Easdale and
Ballachulish are equal to any.
Aberdeenshire is the chief
seat of the granite trade, and has been associated with it for about 300
years. When granite was adopted to supplement the other building material
available in that county, a supply was drawn from the loose blocks which lay
about in great abundance. Granite quarrying, as now understood, was not
begun till about the middle of last century; and not until a number of years
afterwards were the modes of working the material such as to promise for it
a widely extended use. As time wore on, the quarrying and working of granite
came to be better understood. In the year 1764 the export trade, now of so
much importance, was begun. About that time it was resolved to have the
streets of London paved, and the durability of Aberdeen granite having been
tested, that material was fixed upon as the most suitable. From the
preference given. to it in that instance has arisen an export trade not
confined to the metropolis or to the supply of paving material, but dealing
with every part of the kingdom, and supplying every kind of stone-work. A
few years passed, the trial made of the durability of Aberdeenshire granite
proved highly satisfactory, and the consequence was a demand which led to
the opening up of quarries in the neighbourhood of the city of Aberdeen
whore the supply of granite is abundant.
It appears, from a reference
in "Kennedy's Annals," that the contractors for paving the streets of London
began quarrying operations among the rocks on the sea-coast of the lands of
Torrie, and transported the stones, when roughly dressed, to London. They
soon found, however, that such was a very expensive mode of furnishing the
article wanted, and, relinquishing their original plans, they entered into
contracts with the masons of Aberdeen for a supply of stones suitable to
their purpose at certain specified rates. This system has continued up till
the present day; and although one or two London firms have leased quarries
and work them, they do so for local as well as for export trade. Machinery
was first used in quarrying granite about the year 1795, when stones of
large dimensions were ordered by the Admiralty for the docks at Portsmouth,
at that time in course of construction. The expense of procuring large
blocks of stone, such as those required for the Bell Rock Lighthouse and for
the Waterloo and London Bridges, must have been rather heavy; but the name
that Aberdeen granite gained by being used for such works had the effect of
increasing the demand. And this was enhanced locally by the building of
Union Bridge and the opening up of Union Street about the beginning of the
present century. From that time the trade may be said to have been fairly
established, and year by year it increased in importance, the demand for
London alone being productive of great good, not only to the town and
county, but to the shipping of the port. During the year 1817 the quantity
of stones exported to London was 22,167 tons, the value of which, including
freight, was about L.23,275. In 1820 the late Sir John Rennie recommended to
the Admiralty the use of stones from Aberdeen for docks being constructed at
Sheerness. In 1821 the exports, principally of building and carriage-way
paving-: stones, amounted to 34,687 tons, and in 1831 to 36,252 tons. During
the interval the greatest increase in the export trade was in kerb and
carriage-way stones, which in the ten years advanced by some 12,000 tons.
It is calculated, on pretty
accurate data, that the quantity of granite quarried annually in
Aberdeenshire is upwards of 80,000 tons, and of that nearly 40,000 tons are

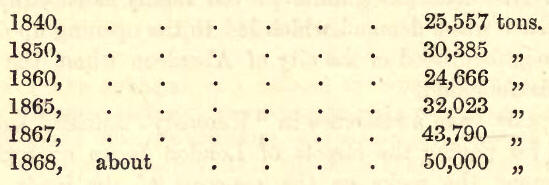

exported. The following statistics will show the number of tons of granite
exported from Aberdeen from 1840 down to the beginning of 1869:
All the quarriers in
Aberdeenshire produce kerb and causeway stones, and some devote their
attention almost entirely to that branch. Within recent years various
improvements have been made in preparing kerb, causeway, and tramway stones
for the London and other markets. As in the case of every other art when in
its infancy, for several years little progress was made either in keeping
the quarries in good working order or in improving the instruments of
labour. In fact, it is only recently that machinery and steam-power were
introduced to work granite quarries. From the great strength of the stone,
it has to be blown from its bed by gunpowder; otherwise, the processes
followed are the same as in quarrying freestone; but on account of the
extreme hardness of the granite, the cost is five or six times greater. Of
late years the bores in the stone have been made considerably larger in
diameter, and now the common depth may be said to range from four to twenty
feet. After the blocks are thrown out of the "face" of the quarry by
blasting, they are cut with wedges into the various sizes required. The
blocks are then handed over to masons, who work them into the different
"orders." Keeping out of view the large number of skilled artisans working
in granite in the city of Aberdeen, the quarries of the county give
employment to upwards of 1000 hands.
The quarries at Kemnay,
leased by Mr John Fyfe, are the largest in the north, more material being
sent out from them than from all others in the county. Situated in close
proximity to the Kemnay 'station, on the Alford Valley Railway, every
facility is present to develope the work. On an average Mr Fyfe gives work
to 250 men all the year round; and these, with the aid of steam-power; which
he was the first to introduce in the quarrying of granite, turn out several
thousand tons of stone monthly, which goes partly to the home and partly to
the foreign markets. Mr Fyfe, it may be remarked, has the contract for
supplying the principal stones for the Thames embankment; and besides that,
he does an extensive business in kerb and paving stones for London and
elsewhere. The Kemnay granite is of a light colour, and from its close
texture has become very popular. Since 1858, when the quarries were first
opened, Kemnay, formerly a country hamlet, has become a place of some
importance, a number of houses for the accommodation of the workmen and
their families having been erected by Mr Fyfe. Rubislaw quarry, leased by Mr
Gibb for several years, produced a large quantity of granite of a fine dark
blue colour, of which a great part of Union Street, Aberdeen, is built. The
other quarries of note in the county are those of Sclattie, Dancing Cairn,
Persley, &c. From all these, as well as from Cairngall, leased by Messrs
Alexander Macdonald, Field, & Co., a good substantial stone, known as
Aberdeen granite, is got. The Cairngall quarries, in particular, produce a
fine small grained stone, admirably adapted for polishing and for ornamental
work. In fact, for those purposes, no better material has as yet been found.
It was from Cairngall that the sarcophagus for the remains of his late Royal
Highness the Prince Consort was taken. All over the kingdom monumental work
in granite from this and the other Scotch granite quarries may be met with.
The red or Peterhead granite is found at Stirlinghill, near Peterhead, about
thirty-two miles from Aberdeen. It is from that district that the principal
supply for the Aberdeen stone-yards is obtained. The red granite is commonly
used for mural tablets, gravestones, &c.
An important branch of the
granite trade is the conversion of the stone by carving and polishing into
architectural ornaments and monumental work. It had its origin in Aberdeen;
and the largest granite polishing establishment in the country is that of
Messrs Alexander Macdonald, Field, & Co. of that city. The first experiments
in granite polishing were made by the late Mr Alexander Macdonald, father of
Mr Macdonald of the above-named firm, about the year 1818. Previous to the
year 1819, the only tools used in dressing granite were small picks, and it
was when the County Rooms, Union Street, Aberdeen, were being built in that
year that chisels and "puncheons" were first tried by some free-stone
masons, who, as work was scarce in their department, undertook to work in
granite with the tools used in dressing sandstone. In preparing granite
blocks for polishing, such tools, tempered to suit, were found to be
extremely serviceable, and they were generally adopted. About the year 1830
Mr Macdonald removed his works from King Street to the extensive premises
now occupied by his successors in Constitution Street. There, in 1839, he
was joined by Mr Leslie; and under the firm of Macdonald and Leslie, the
granite polishing trade of Aberdeen became extensively known. Up till that
time, and, in fact, till within the last seventeen years, this was the only
manufactory of the kind; and now, although there are in Aberdeen several
similar establishments, none come up to it in extent or importance. One of
the chief improvements introduced by the late Mr Macdonald in preparing
granite blocks for polishing was the use of patent axes. The rough blocks
sent from the quarry require to be finely dressed before they are fit for
polishing. After being dressed to a somewhat even surface, axes are used;
and until the introduction of the six and eight bladed axe by Mr Macdonald,
the work had to be done with light picks and single-bladed axes. The
"compound axes," as they are called, are steel chisels clamped together so
as to present a face to the stone of six or eight edges on a space of two
inches. Mr Leslie continued in partnership with Mr Macdonald till 1852,
after which the business was carried on by the last-named gentleman until
his death. Since then his son, the present senior partner of the firm of
Alexander Macdonald, Field, & Company, and the other partners, have still
further extended the name and reputation of the original Aberdeen granite
works.
At the polishing
establishment under notice the granite is brought into the yard in blocks of
various sizes, according to the nature of the work to which they are to be
devoted. By means of travelling cranes the blocks are moved from place to
place, or hoisted on to trucks running on rails which traverse every
department of the works. In the preparation of slabs of granite for panels
or mural monuments, the first operation is to saw up a block into pieces of
the required thickness. This is done by powerful sawing-machines propelled
by steam. The cutting part of the machines consists of a number of parallel
blades of sheet iron fixed in a strong frame—the space between the blades
determining the thickness of the slabs. The blades are drawn backward and
forward on the stone, being meanwhile supplied with sand and water, which
help the saws to grind down the granite. The process is exceedingly slow,
some months being required to cut up the larger blocks from which slabs are
made. The granite is polished by machinery, except in the case of intricate
carvings, which have to be operated upon by hand. A mixture of sand and
water is applied in the first instance, and after the surface has been
rubbed smooth by means of these, emery is used. Under this treatment the
stone assumes a glassy surface, the brilliancy of which is enhanced by a
final polishing with oxide of tin.
Granite exists in almost
exhaustless abundance in the stewartry of Kirkcudbright. The three principal
districts where it is found— namely, that in the north-west, extending from
Loch Dee to Loch Doon; the second, stretching from Loch Ken to Palnure
Water; and the third, from Criffel to Craignair—occupy nearly one-fourth of
the surface of the stewartry. Though the existence of the granite was well
known many years ago, the proper mode of working it was not undeittood; and
no idea being entertained of the important uses for which it could be made
available, no attention was until recent years paid to quarrying or working
this valuable rock. When a gentleman's residence, or other decorated
building, was being erected in the locality, the corner and other principal
stones in the structure were formed of the. Old Red Sandstone from
Dumfriesshire. And when the bridge over the Dee at Tongland was built—in the
years 1804-5-6, after a plan by Mr Telford, the celebrated engineer, at a
cost of nearly L.7000—it appears never to have entered the mind of any one
concerned to utilise the granite boulders which lay scattered at convenient
distances from the site of the bridge. On the contrary, the stones employed
in the erection of the structure were tram- ported at great expense from
Annan and the Isle of Arran; and they were subject to a heavy duty, which
greatly augmented the aggregate outlay.
The late Mr Andrew Newall,
Dalbeattie, had for some years previously carried on in a small way the
trade of granite hewing; but it was not till 1825 that anything like
extensive operations in the working of granite were commenced in the
district. In that year the Liverpool Dock Trustees leased from the late
proprietor of Munches—Mr John H. Maxwell—a portion of Craignair Hill, in the
immediate vicinity of Dalbeattie, with the view of opening a quarry on it to
obtain blocks suitable for dock purposes; and having entrusted the
supervision of the works to a confidential and skilled manager, that
gentleman began operations with so much energy and satisfactory success,
that within a few weeks he shipped, to Liverpool the first instalment of
stones. With these the engineer of the docks—the late Mr Hartley—was so well
pleased, that orders were immediately received to open another quarry on the
hill, and engage as many more men as could be obtained. These instructions
were as speedily carried out as the efficient conduct of the already
extensive existing operations at the hill would allow. At those two quarries
some hundreds of workmen and labourers were daily employed, and some
thousands of tons of the wrought material were annually sent to Liverpool,
and applied to dock purposes only. That was the first impetus given to the
granite trade in Galloway. Its beautiful product, as inspected on the banks
of the Mersey, soon made Craignair famous; and there the works continued to
be prosecuted with unflagging energy and satisfactory success till 1832,
when the manager having failed in his efforts to obtain blocks of the very
large dimensions required at the docks, except by incurring great expense in
the removal of the superincumbent mass of dAris, opened a quarry on the farm
of Kirkmabreck, in the parish of that name, in the south-west of the
stewartry. Two of the Craignair quarries are worked by Messrs D. H. & J.
Newall, who turn out large quantities of dressed granite. In addition to
these quarries there are two others in the hill. One is worked by Mr Charles
Newall, who employs a considerable number of hands, and is one of the
contractors for supplying stones for the Thames embankment.
About four years ago Mr Hugh
Shearer of London was successful in obtaining the first contract for
supplying granite for the Thames embankment, and opened several new quarries
on the Munches estate, reopening at the same time four quarries which had
formerly been worked by the Liverpool Dock Trustees. Such is the beauty and
durability of the stone that it is said the engineers of the Board of Works
prefer it to any other; and Mr Shearer and the partners he assumed about a
year ago—the designation of the firm now being Messrs Shearer, Smith, &
Co.—have supplied, and are still supplying, many thousands of tons of
material for the great work referred to, and have besides sent large
quantities of paving stones into Russia, several Mediterranean ports, and
South America. They have also furnished a great part of the paving stones
recently used in Edinburgh, Glasgow, Leith, and some of the principal towns
in England; and are at present applying their forces to the conversion into
paving-stones of the hundreds of thousands of tons of material accumulated
in their "spoil heaps," which has hitherto been treated as waste. It is
largely owing to the enterprise of Mr Shearer in securing the use of the
stone in the Thames embankment, that the Kirkcudbrightshire quarries owe
their present celebrity. Messrs Shearer, Smith, & Co. employ from 300 to 600
workmen, according to the demands upon them. Their works have a direct
connection with the railway system of the country, and they have a loading
pier on the river Urr, so that they have ample facilities for transporting
their produce. The stones for the Thames embankment are forwarded by rail,
dressed. and ready for the builders.
In the parish of Kirkmabreck
very extensive operations in granite working have been carried on for a long
series of years. Adjoining the public road leading to Gatehouse, about two
miles from Creetown, is an extensive quarry, leased by the Liverpool Dock
Trustees. All the stones procured there are used for dock purposes only.
There are four vessels constantly employed by the Liverpool Company in
transporting the stones to their docks, and other vessels are often engaged
in the same service. On one occasion, when the quay at this place was
transferred from one proprietor's land to that of another, there were
nineteen vessels constantly occupied for six months in the removal to the
banks of the Mersey of the material that had accumulated at the abandoned
wharf. About two miles east from these works, on the farm of Bagbie, on the
estate of Kirkdale, belonging to Major Rainford Hannay, a quarry was opened
in February 1864 by Messrs Forrest, Wise, & Templeton. The stone of this
quarry is of first-class quality, and, like that at Kirkmabreck, can be
worked without blasting. In connection with their works the firm have a
commodious quay erected for the shipment of such portions of their prepared
materials as are transported by sea, and between it and the quarry they have
constructed a tramway. There is still another quarry in this neighbourhood
deserving notice. It is situated near the apex of the hill at whose base are
the Kirkmabreck quarries, and almost in a straight line from these works. It
is within the farm of Fell, and hence called Fell Quarry. It is worked by
the Scottish Granite Company. Messrs Newall have an extensive polishing
establishment. The process of polishing is of recent introduction into
Galloway, the first experiments in it having been made by the late Mr Andrew
Newall a few years ago. By Messrs D. H. & J. Newall the art has been brought
to a state of great perfection, and is extensively carried on by them with a
constantly increasing business. From their quarries on Craignair the firm
are supplied with part of their material for polished work. But large
quantities of red granite are obtained from the island of Mull. While the
produce of the latter is exported in large quantities, that of the former is
used almost entirely at home. The Old Town of Edinburgh was built of red or
grey sandstone, obtained in the neighbourhood without much labour in
quarrying. The newer portions of the city have been built of stone drawn
chiefly from the extensive quarries of Craigleith, Ravelstone, Redhall,
Humbie, Binnie, and Hailes, which are situated on two extensive tracts of

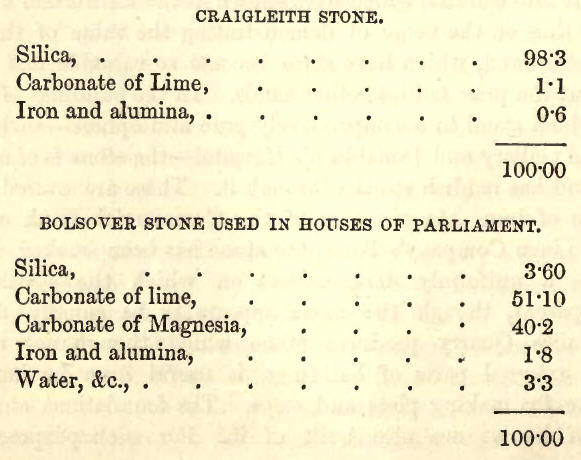

sandstone lying to the west of the city. Craigleith Quarry has been worked
out to a great depth. The stone is hard and difficult to excavate and dress.
Before railways afforded ready means for conveying stone from a distance,
Craigleith was a valuable possession, especially about forty or fifty years
ago, when the "liver" rock—as the great unstratified beds in quarries are
called—was abundant; but now little stone is being drawn from it, the demand
being met more cheaply by softer stone obtained from various quarters. It is
still preferred for steps and plats in staircases. Among buildings composed
of Craigleith stone may be mentioned the University and the houses in
Charlotte Square and Randolph Cliff, Edinburgh. The same quarry supplied
some of the material used in the construction of Waterloo Bridge, London,
and large numbers of plats and steps for houses in London and elsewhere in
England. The Ravelstone Quarry yields stone similar in quality to that of
Craigleith. At Redhall the rock which is being worked be-longs to the lowest
sandstones of the coal formation. The stone is of fine quality, and very
durable—its durability depending chiefly on the large proportion of silica
that it contains. So abundant is the silica that it is frequently found
concentrated in nodules. These nodules give great trouble to the quarrymen,
who call them "white whin." The nodules are among the curiosities of geglogy,
and the minds of geologists have been puzzled to account for their
appearance, because they are evidently of the same origin as the softer
stone in which they are embedded, and contain the same fossils. As specimens
of Redhall stone in Edinburgh, St John's and St Paul's Episcopal Churches,
and the houses of Heriot Row, may be men¬tioned. It was in Redhall Quarry
that an improvement on the primitive method of breaking out the stone by
means of wedges and small charges of gunpowder was made. The quarry belongs
to Mr James Gowans, of Rockville, who is the most extensive lessee of
quarries in Scotland. About eighteen years ago Mr Gowans intro¬duced the
method of boring, at a suitable distance from the "face " of the quarry, a
row of holes of great depth, and charging these with gunpowder, which was
ignited by a galvanic battery. The holes, which are from three to four
inches in diameter, are bored by a machine Immense quantities of stone are
in this way obtained by a single operation, and at less cost than by the old
mode. Humbie Quarry, near Kirkliston, was worked for many years, and
supplied some good building material; but it is now abandoned, on account of
the cost of raising the stone being unfavourable to its introduction into
the market in competition with the produce of quarries more advantageously
situated. Since this quarry was closed another has been opened further north
on the Hopetoun property, which is called New Humbie. The stone from it has
been used in street buildings, especially in the Newington district. The
stone from Kingscavil Quarry, near Linlithgow, has been long in use for
foundations and inside work. The Binnie Quarry, near Uphall, produces stone
of equal durability with those already mentioned, but differing in certain
respects from all. Binnie stone was extensively used in the buildings
erected in Edinburgh and the neighbourhood about the year 1835. The Scott
Monument, Donaldson's Hospital, the National Gallery, the Commercial and
British Linen Company's Banks, Edinburgh, are built with this stone, and the
latest great work in it is the Bank of Scotland. Binnie stone, on account of
the bitumen which it contains, has generally a freckled appearance; and
wherever this is most distinctly marked, the stone is most durable. In some
specimens the bitumen is so abundant that, if a small piece of the stone be
placed in the fire, the bitumen will be seen to bubble up. The quarry is
situated in a locality abounding in shale, and the bitumen is supposed to
have flowed in from the shale beds, and the stone become impregnated with
it. Fissures in the quarry are filled with bitumen, some of which was
collected by Mr Gowans in 1850, and made into candles, which were shown at
the Exhibition of 1851. He was thus on the verge of demonstrating the -value
of the shale beds of Scotland, which have since become so valuable and
important; but the prize fell into other hands. In the buildings of Binnie
stone which stand in a comparatively pure atmosphere—such as the National
Gallery and Donaldson's Hospital—the stone is of a brown tinge, and has
reddish streaks through it. These are caused by the presence of iron. In the
case of the Commercial Bank and the British Linen Company's Bank, the stone
has been smoked until it presents a uniformly dark surface on which the
streaking is not apparent, though the stone appears to be equally durable.
The Hailes Quarry produces stone which, though not adapted for the external
parts of buildings, is useful from its laminated structure for making plats
and steps. The foundations and inner walls of houses are also built of it.
For such purposes it is of great value, as it can be worked at a
comparatively small cost.
A number of extensive
quarries have been opened in Stirlingshire since the advent of railways.
These have competed with the local quarries in supplying stone to both
Edinburgh and Glasgow. The most important are those of Dunmore, Polmaise,
and Plean, in the neighbourhood of Bannockburn, where the coal measure
sandstone terminates. The stone obtained from these quarries is durable, but
it is not of such a fine quality as that supplied by the quarries in the
neighbourhood of Edinburgh. A number of the houses recently built on the
south side of Edinburgh have been constructed of stone from Stirlingshire.
In 1867 Mr Gowans sent from
the Plean Quarry a large quantity of stone to be used in the erection of a
new warehouse in Paternoster Row, London, for Messrs Nelson & Sons,
publishers. It is expected that this specimen of work in Scotch stone will
lead to further orders; for both its beauty and the ease with which it can
be worked will be sure to commend it to the favourable notice of architects
and builders. It would be interesting to note the effect of the London
atmosphere on the stone of Messrs Nelsons' warehouse, which is composed
entirely of silica, as compared with the limestone generally used in London.
Had the new Houses of Parliament been built of Scotch stone, there is every
reason to believe that the nation would have been spared the regret caused

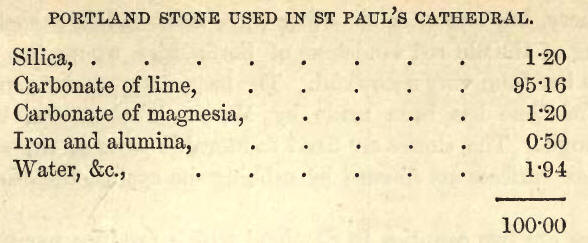

by the premature decay of that costly edifice. The following analyses will
convey an idea of the difference in composition of some of the principal
Scotch and English building stones:—
In Fifeshire there are a
number of quarries, the most important being the Grange and Callalo
Quarries, near Burntisland, from which the stone employed in building Fettes
College, Edinburgh, is being obtained. The Unitarian Chapel in Castle
Terrace and some streets on the north side of Edinburgh have been built of
the same material, which was also used in the restoration of St Giles'
Cathedral. On exposure to the atmosphere the stone assumes a dark colour,
and appears to require careful selection on the part of the builders. A
variety of freestone obtained from the coal measures in the Wishaw district
has recently been introduced by the Edinburgh builders, and is being used in
the erection of villas and streets at the south side. Most of the new houses
bordering on the West Meadow are composed of it. Cockburn Street is built of
a stone also brought from the west, the quarries from which it came being at
Bishopbriggs, on the Edinburgh and Glasgow Railway. The houses of Glasgow
have been chiefly built of stone obtained in the immediate neighbourhood of
the city. Good building stone is abundant all through the west of Scotland
from the Clyde to Dumfries, and patches exist at various places in the east
and south-east. To the north of the Ochil range the rock for a long distance
belongs to the old red sandstone. The Scottish Central Railway passes over
that formation during its entire route from Stirling to Perth, and the
North-Eastern runs on it from Perth to where the line enters the Grampian
range. The stone all through the district referred to is suitable for
building purposes. It is durable if used with the strata lying horizontally;
but if laid with the strata in a perpendicular position it wears away
rapidly. Cases of decay arising from ignorance or neglect of this
peculiarity may be seen in the houses of Perth.
About 2000 men are employed
in the freestone quarries. They receive from 20s. to 25s. a-week, which is
an increase of 25 per cent. on the wages paid twenty years ago. Steam-power
is extensively used in the quarries to work cranes, pumps, and inclined
planes. A large number of horses are also employed.
Several attempts have been made to dress or prepare the stone by machinery,
but one after the other these have failed, except in the dressing of the old
red sandstone of Forfarshire, where the planing process has been very
successful. The nearest approach to success in local freestone has been made
by Messrs Watherstone, builders, Edinburgh. The stones are fixed to movable
parts of the machine and their surfaces are dressed by rubbing one against
the other.
There are two counties in
Scotland which produce paving-stones —Forfar and Caithness. The pavement
quarries of Forfarshire are the oldest and most extensive in the kingdom. Of
late years the trade has been largely developed by the introduction of
planing, cutting, and dressing machines. The planing-machine now in use in
almost all pavement quarries was invented by the late Mr James Hunter, of
Leysmill, near Arbroath, who was for many years manager of the quarries
belonging to the late Mr Lindsay Carnegie, of Spynie and Boysack, and now to
his son and successor in the estate. Mr Carnegie, a public-spirited and
kindly gentleman, took great interest in the quarries, as well as in the
workmen employed about them; and it was chiefly owing to the encouragement
received from him that Mr Hunter was able to complete his useful invention.
But, important as the planing-machine has proved to be, it has been eclipsed
by the stone-cutting and dressing-machines invented by Mr Hunter's son, Mr
George Hunter, now of the Welsh quarries, in conjunction with Messrs Munro &
Company, of the Arbroath Foundry. The machines, which are sent to all parts
of the country where there are quarries, form a considerable article of
manufacture at Arbroath. Had it not been for them, the pavement trade could
never have attained its present dimensions. The cutting-machines are of
great strength, and consist of a series of chilled iron tools placed in
revolving discs, by means of which great slabs of stone are cut through or
split up with as much ease as if they were pieces of card-board. The
dressing-machines are used for dressing stair- steps, coping, and much of
the general mason-work still commonly done by manual labour.
The Forfarshire pavement
quarries, which these machines have been largely instrumental in making
famous, extend from Leysmill, in the east, which is situated about three
miles inland, to near the fine old castle of Glamis, in the west—a distance
of about sixteen miles. From north to south, they stretch from Montrewmont
Muir to the Sicllaw Hills—about twenty miles. The quarries are thus all
situated in the southern or more lowland portion of the county. The pavement
produced throughout this district, as well as that worked in the
neighbourhood of Arbroath, is known in commerce as "Arbroath pavement." The
material is a freestone, and is found in the lower beds of the Devonian or
Old Red Sandstone formation. It is solid in composition, and therefore very
durable, but is easily worked and dressed. It is extensively used, not only
for paving streets, but for all inside work of houses, and for other
purposes.
At the eastern point of the
geographical line described are the Leysmill Quarries. These have been
worked for about half a century, and for the greater part of that time by
the late Mr Carnegie, of Boysack, the proprietor. The present lessees are
Messrs Straton and Cargill, who employ about sixty men, belonging chiefly to
the villages of Friockheim and Leysmill On the Guthrie estate is Montrewmont
Quarry, tenanted by Messrs Baxter & Mann, who have three planing-machines,
and employ from fifty to sixty men. Bordering on this, on the estate of
Turin, there is a quarry called the Dub, which is tenanted by Mr James Hall,
the oldest quarry- master in Forfarshire. Mr Hall has one planing-machine,
and employs twenty men. The two quarries just mentioned were opened about
ten years ago. The next quarry to the westward is Tillywhandland. It is
situated in the parish of Aberlemno, belongs to Mr P. H. Thorns, and is
leased by Mr David Wilkie. Further on is the Myrestone Quarry, on the
Pitscandly estate, tenanted by Mr John Gray. Each of these quarries employs
one planing-machine and twenty or thirty men; in the latter there is also a
ridge-stone machine. In this district a durable but heavy grey slate for
roofing was formerly worked; but it is now generally discarded in favour of
the thin blue slates. The Carsegownie, Tolbooth, and Balma¬shanar Quarries,
the latter of which is one of the oldest in Scotland, are situated in the
neighbourhood of the town of Forfar. Carsegownie is worked by Mr David
Murray; Tolbooth, by Messrs Thomson & Brown; and Balmashanar, by Mr David
Barry. Each employs from twenty to forty men. With the exception of Leysmill,
the pavement from the whole of these quarries has to be carted a distance of
from three to four miles to the nearest railway station.
Further south are the
Carmylie Quarries, which are the most extensive in the country. They are
situated six miles from Arbroath, in the parish of Carmylie, which forms
part of the south-eastern breast of the Sidlaw Hills, and consists chiefly
of a series of high grounds scarcely approaching to hills, with their
intervening valleys running from south-west to east. The quarries belong to
the Earl of Dalhousie, and are at present leased by Messrs Duncan, Falconer,
& Co. They have been worked for several centuries all over the parish. About
seventy years ago the parish was tenanted by an industrious and intelligent
race of workmen. At that time the land was still divided into small farms
and pendicles, and each farmer was allowed the liberty of quarrying on his
own farm. The farmers generally worked in the quarries from the time they
got the seed into the ground until harvest. The principal quarrying in those
early times was for slates, which were carted in large quantities to Dundee
and the neighbouring towns, and also shipped to Leith, to be used in
covering houses in that town and in Edinburgh. It was in the beginning of
the present century that the Carmylie Quarries began to be worked for
pavement to any considerable extent. The farmers, who were still also the
quarrymasters, quarried the stones from 1 to 11 inch thick, and carted them
in their milk-carts to Dundee and Arbroath, where they were sold at the rate
of 2s. 6d. a load. About sixty years ago the farmer of East Hills of
Carmylie, on whose farm the principal quarries were and still are situated,
had seven or eight men quarrying. After they had made several searches for
good pavement, the foreman told his men to take up their tools and go home
to their master to tell him that the quarries were done ! Soon after that
all the quarries were let to one tenant, who shipped to Leith and Glasgow.
The late Mr Fyfe, father of Mr Fyfe of Messrs Mather & Fyfe, pavement
merchants, Glasgow, was the first to sell Carmylie pavement in Glasgow. He
was then the only pavement merchant in that city. At that time the quarries
began to be worked on a more extensive scale. Windmills, with movable wooden
frames, were erected for the purpose of pumping the water; but that
arrangement, which was long in use, was sub¬ject to the drawback that, if
there was no wind to drive the mills, the quarrymen could not work. About
forty years ago there was so much difficulty in getting rid of the water
that a drain, running through a large part of the parish, and a portion of
it tunnelled through a hard sandstone rock, was constructed, at a cost of
L.3000, for the purpose of draining the principal quarry. The machinery
employed at that time consisted of a small single-power crane, which with
care might be made to lift a stone a ton in weight.
The present state of things
at Carmylie is much different from what it was even twenty or thirty years
ago. There are about 300 men in constant employment at the place. The
machinery consists of eight planing-machines, several cutting-machines,
eight saws for jointing pavement, one machine for making steps, coping, and
tabling; two polishing-machines, six steam-engines, and from twelve to
fourteen steam and other cranes. The quarries turn out almost any weight or
size of stones—some weighing twenty tons and measuring 20Q feet superficial.
The Carmylie stones are famous for paving, and for steps; cisterns for
paper-makers, chemical works, and bleach-fields; columns, balustrades, and
other architectural ornaments. For these and similar purposes they are
widely exported to the chief cities of the United Kingdom, to many countries
in Europe, to the United States, Australia, and the colonies generally. Many
towns in Scotland are paved with Carmylie stones. They have been, or are
being, used as paving, steps, copes, &c., at a large number of public
buildings—such as the new University of Glasgow, the New College, Edinburgh,
the Bank of Scotland, Edinburgh, all the principal buildings in Aberdeen,
the Perth railway station, &c. The weight of stones sent away from the
Carmylie Quarries daily is about 150 tons. A single line of railway extends
from the quarries—the rails going to the bottom—to Elliot Junction, near
Arbroath, a distance of five miles. The Carmylie Railway, as it is called,
passes near the village of Arbirlot, and skirts the beautiful Kelly Den,
which is of so much interest to the geologist. The line was constructed by
the Earl of Dalhousie, who sold it some years ago to the Caledonian Railway
Company. It is used exclusively for the carriage of paving and other stones
from the Carmylie Quarries.
The quarries are a great
benefit to the parish, as most of the workmen reside there. They are an
industrious, sober, and saving class. The greater number of them have a
piece of land, and keep a cow or two. Intoxicating drinks are not allowed to
be sold in the parish.
South from the Carmylie
Quarries are those of the Gwynd, which belong to Mr Pierson, and are leased
by Messrs Barrie & Galloway. There are three planing-machines at these
quarries, and from sixty to eighty men are employed. The Pitairlie Quarries,
in Monikie, belong to Lord Dalhousie, are tenanted by Mr David Barry, and
about fifty men are employed. Westward are the Gagie, Wellbank, Kingenny,
and Duntrune Quarries, each employing a considerable number of men. Duntrune
produces pavement, but yields thick rock in greater abundance. With this
exception, all the others mentioned are strictly pavement quarries.
Although not immediately
belonging to the industrial part of the history of these flagstones, it may
not be uninteresting to note the fossils of Carmylie—especially the
"Seraphim" of the Forfarshire quarryman, this being one of the earliest
discovered. A figure of it is given in Plate IX. of Mr Hugh Miller's "Old
Red Sandstone." At the time that lamented gentleman wrote his fascinating
book, nothing was known about these puzzles beyond the quarryman's name,
until the genius of Agassiz, on baying a lot of the fragments laid before
him, pronounced them to be "remains of a huge lobster;" and the correctness
of that opinion has since been demonstrated by some almost entire specimens
of these crustaceans having been turned up; one of the largest—or rather a
good portion of one—discovered in Carmylie Quarry in 1861, showing
tail-plate and eight post thoracic segments. This fragment measures in the
cast fully 3L- feet in length. The animal, when entire, would no doubt be 6
feet long. It is now in the museum at Arbroath, and is one of the "lions"
there. Cephalaspis, with a few plants and masses of "Puddock's spue," also
occurred with the Pterygotus (the name now given to the "Seraphim)." When
Hugh Miller wrote these were the only fossils known in the Forfarshire
rocks. Now, through the industry of the Rev. Mr Mitchell and others, and
especially the zealous labours of Mr Powrie of Reswallio, fossils have been
found in abundance in various parts of the county, and many interesting new
genera and species of fossil fishes and crustaceans have been added to the
list.
The pavement quarries of
Caithness are of considerable extent and importance, and their produce has a
world-wide reputation. The working of the quarries and the dressing of the
stones constitute a considerable part of the industry of the county,
employing more persons than any other kind of trade, exclusive of
agriculture and fishing. Considering the natural disadvantages which it lies
under, the county of Caithness has made great progress during the present
century. Agriculture has been advanced, the fisheries have engaged much
attention, and the manufacture of pavement has added to the growing
prosperity of the people. The county is largely indebted for the development
of its industries to, among others, the late well-known Sir John Sinclair,
of Ulbster, and the late Mr Trail of Ratter. The son of the last-named
gentleman—Mr George Train, the present much-respected Member of Parliament
for the county— has worthily continued the work begun by his father, and has
especially taken a deep interest in the working of the pavement quarries. Mr
Sinclair, of Forss, also deserves to be mentioned for the part he has taken
in developing the pavement trade.
The Caithness flagstones
belong to the middle formation of the Old Red Sandstone. Great numbers of
fossil fish and plants are found intercalated among the flag-beds of
commerce, having been buried in the ancient mud of the Old Red waters. These
fossils appear on almost every slab of Caithness pavement, but although the
fish remains lie by thousands it is seldom that anything like a perfect
specimen is got. However, they are beautiful in their ruin— their blackened,
enamelled, and glistening scales and plates standing out in contrast with
the sober grey of the matrix. The flag-beds have suffered much in geological
ages from dislocations by "faults" and other causes.
The geological character of
flagstones having, of course, a close relation to their commercial and
industrial value, it may not be out of place to quote what an eminent
geologist states concerning the flagstones of Caithness. In his "Siluria,"
Sir Roderick Murchison says:—"The flagstones of Caithness are in many places
impregnated with bitumen, chiefly resulting from the quantity of fishes
embedded in them. Their most durable and best qualities as flagstones are
derived from an admixture of this bitumen with finely laminated silicious,
calcareous, and argillaceous particles, the whole forming a natural cement
more impervious to moisture than any stone with which I am acquainted." Sir

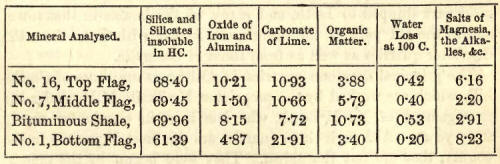

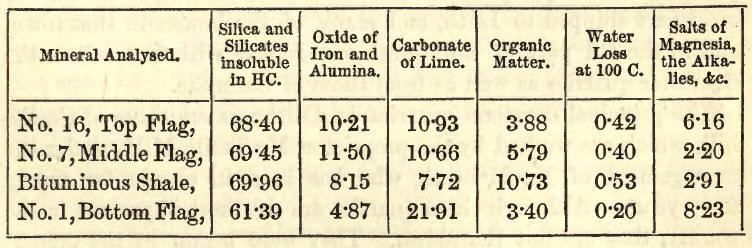

Roderick then gives analyses of several specimens of flagstone and the
accompanying bituminous shales from Mr Train's quarries at Castlehill, and
considers that they are of "high value, having been prepared by that
distinguished chemist, Dr Hoffman." These analyses are as follow:—
Sir Roderick adds, "These
results completely sustain the opinion I was led to form on the spot, that
the peculiar tenacity and durability of the flag-stones is due to the manner
in which silica and alumina are cemented together by certain proportions of
calcareous and bituminous (organic) matter."
A portion of bituminous
schist got near Barrogill Castle was analysed by Dr Hoffman, and yielded, of
fixed matter (mineral), seventy parts, and of volatile matter (organic),
thirty parts. These oil-yielding shales may some day be considered worthy of
special attention. They exist in great quantities.
As a proof of the durability
of the Caithness pavement, a circumstance which occurred a few years ago may
be mentioned. A fire broke out in a building in Leith Walk, Edinburgh, and
the hose for the engines was laid across the road. The ordinary traffic line
being thus impeded, the cabs, carts, and waggons, some of the latter heavily
laden, took to the footway, and the consequence was that for nearly 200
yards the sandstone flags—from the north of England and other places—were
broken under the unusual weight, whereas a portion, several feet in width,
of the same road, laid with Caithness flags, bore all the traffic without
being injured.
The principal pavement
quarries in the county are situated on a line extending from the parish of
Olrig, on the shores of the Pentland Firth, to the Parish of Reay, in the
west—a distance of ten or twelve miles. Another run of pavement commences at
the seaside four miles south from Wick, and extends westward to the parish
of Falkirk, in the centre of the county. The first exportation of pavement
was made from quarries on the Crown lands of Scrabster, formerly belonging
to the bishopric of Caithness, and situated near Thurso, in one of the most
cultivated parts of the county. It is believed that, centuries ago, slates
quarried at Scrabster were exported to the south. There were no roads in
Caithness at that time, nor any carts, and, until a comparatively recent
period, the slates were carried on the backs of the workmen to the shore,
and put on board ships lying in Scrabster Roads. They were for the most part
shipped to Leith, and many of the houses in that town, and in the old part
of Edinburgh, are roofed with slates from the Scrabster quarries as well as
from those of Carmylie.
The principal flagstone
quarries in Caithness are those of Castlehill, which are worked by the
proprietor, Mr Trail, ALP., under the management of Mr M‘Beath, who has been
in charge for nearly forty years. Although these quarries are the most
important in the county, they are not the oldest. They were begun by the
present proprietor's father, a gentleman who, as already hinted, took a
leading part in everything that was likely to prove beneficial to Caithness,
and one of whose chief motives was to find employment for the honest and
industrious people around him. Mr Train introduced many improvements on his
estate, and, in order the better to carry these out, he built two
harbours—one at Castlehill, in Dunnet Bay, and one at a place called Ham.
Quarrying was then begun and a number of workpeople were attracted to the
district. For their accommodation, and to encourage them to settle there,
this public-spirited gentleman feued off at a cheap rate a portion of
ground, and, free of charge, gave stones to his workpeople with which to
build houses. In that way was built the large and thriving village of
Castleton, situated on the shore of the Pentland Firth. The building of this
village has secured a race of steady, industrious workmen for the quarries.
The village, which attracts the notice of the traveller by its order and
cleanliness, possesses several schools, churches, and a public hall. Mr
Trail takes much interest in the working population of the place.
The Castlehill Quarries are
very favourably situated, and have the advantage over all the other quarries
in the county of being close to the seaside and to Castlehill harbour. It
was from the Castlehill Quarries that pavement was first exported from
Caithness in large quantities, and they continue to take the lead. The
quarrying is easily effected, as the stone readily opens up in the natural
layers and seams. Immense slabs are detached from the top of the exposed
rock, and these are broken up into square pieces of various dimensions. The
stones are then placed in trucks, and conveyed along a railway to the
cutting and polishing sheds, which occupy the ground between the quarries
and the harbour. The sheds are furnished with sawing and polishing
machinery, driven by a combination of steam and water power. Usually there
are half a dozen vessels at a time in the harbour loading pavement from Mr
Trail's quarries, so that a large amount of capital and labour outside the
locality is employed in the trade. In the quarries, and other departments of
the works, Mr Trail employs from 350 to 400 men. The great establishment on
the River Plate, in which Baron Liebig's extract of meat is manufactured, is
floored throughout with stones from the Castlehill Quarries, and the
cleanliness secured by their use is specially noticed by all visitors to the
place.
In the same beds as those of
Castlehill there are several quarries belonging to Mr Smith of Olrig. These
are worked by Mr John Swanson, who has another quarry on his own property in
the Hill of Forss, near Thurso. Mr Swanson has to cart his pavement to
Thurso for shipment—a distance of five miles from Olrig, and three miles and
a half from Hill of Forss. All the quarrymasters of the county, with the
exception of those of Castlehill, Forss, and Barrogill, have their machinery
at Thurso, on either side of the river, and this is an important item in the
industry of the most northerly town on the Scottish mainland. Near Mr
Swanson's are the quarries on the Ulbster estate, belonging to Sir John G.
T. Sinclair, and tenanted by Messrs Craig & Son, Mr Innes Dunbar, and Mr
Gerrie. Mr Gerrie and Messrs Craig have a quarry each in the Hill of Forss.
-Westward are the Forss pavement quarries, worked by the proprietor, Mr
James Sinclair of Forss. Forss quarries are second only to those of
Castlehill in the number of men and the extent of machinery employed, and it
is worthy of mention that it was at them that machinery for "jointing"
stones was first employed. Further west is the Reay Quarry, situated in the
parish of that name, on the border of Sutherlandshire, and on the estate of
Sir Robert C. Sinclair. All the principal pavement quarries are situated in
the three parishes of Olrig, Thurso, and Reay, which form the north-western
shoulder of the county.
Returning to the second
geographical line described, we come to the Holm Head quarry, on the coast
south from Wick. Nearly forty years ago a few men were quarrying there on
the edge of the cliff, when a portion of the rock fell away, and carried two
of the men with it. Both were killed, and since then no work had been done
at the quarry till about a year ago, when operations were resumed, though
not extensively. Some twelve miles inland are the quarries of Banniskirk,
tenanted by Mr L. Dunbar; and Spittal, leased by Messrs Shearer & Son. Both
are distant from Thurso, the place of shipment, about twelve miles. The most
northern quarry in the county is at Barrogill. It is worked by the
proprietor, the Earl of Caithness. His lordship has persevered in
quarrying—though not, it is believed, very profitably as yet—in order to
give employment to the labouring people in the district.
The pavement quarries had a
marked effect on the wages of the labouring class in Caithness, which have
risen from 7s. or 8s. a-week to from 12s. to 18s. There are no statistics of
the quantities of pavement exported annually from Caithness, but it is
roughly estimated that from 500,000 to 600,000 superficial yards are shipped
every year, the value of which is from L.70,000 to L.80,000.
The date at which slate for
covering houses came into use in Scotland is not known, but there is good
reason for believing that it was at least three centuries ago. Though slate
suitable for roofing purposes exists in various localities, the earliest
used would appear to have been derived from the island of Easdale, which for
upwards of two hundred years has been one of the chief sources of supply. It
is stated that among the ruins of a castle in the north of Scotland, which
was built in the fifteenth century, fragments of slate similar to that
obtained at Easdale were discovered. There is evidence that the Falconer's
Castle at Appin was in 1631 roofed with Easdale slates. Ardmaddy Castle, a
seat of the Earl of Breadalbane, built in 1676, was covered with slates of
the same kind. In the latter case they were fastened with wooden pegs, and
have withstood the tempests of nearly two centuries without requiring to be
replaced. Of greater extent than the Easdale quarries, and of equal fame,
though some years younger, are those of Ballachulish. The other slate
quarries in Scotland are not of much account.
The island of Easdale is so small and so uninteresting in appearance that
persons passing it on the route to Oban would not devote a moment's
attention to it were it not pointed out as the seat of the famous slate
quarries. It forms one of the group of small islands which skirt the coast
of Argyle between Crinan and Oban, and lies close to the south-west point of
the island of Seil. There is an eminence about 130 feet in height towards
the north end, but the greater part of the island rises little above the
high water level. In outline it is irregular, and its extreme measurements
are 850 yards by 760 yards. The island is composed chiefly of clay-slate,
the other rocks being limestone and trap. Mr John White, who was manager of
the quarries for upwards of twenty years, gives the following account of the
disposition and character of the slate:— "The slate-bands appear in two
seams, which are much contorted throughout the whole extent of the island.
These seams are made up of different beds, ranging in thickness from a few
inches to many feet, like our sandstones and limestones, but frequently so
closely united that only a practised eye can detect the line of contact;
whilst the superinduced phenomenon of cleavage constitutes a distinct
dissimilarity between them and the other rocks referred to. It may be
noticed, as an indication of the sedimentary character of these slate rocks,
that there is a decided difference in the quality of the upper and lower
portions of the thicker beds, the former being fine grained and smooth, and
the latter coarse and gritty—the feature which we recognise as analogous to
that exhibited by other rocks of sedimentary origin. Although the
slate-seams are so much contorted as to be found at various angles with the
horizon, the cleavage plane invariably maintains an angle of thirty-seven
degrees to a vertical line, from which it may be inferred that the property
of cleavage was imparted to the rock subsequently to its being disturbed
from the horizontal position. Where the rock has been least disturbed from
the horizontal position it is more easily quarried, and yields better
slates. The slate beds are much affected by what the quarriers call cuts.'
These are joints which intersect the strata in a nearly vertical direction.
Sometimes their presence is advantageous, but when they are too numerous the
stone breaks up into useless fragments." The slate-seams extend across the
channel, 150 yards in width, which separates Easdale from Seil, and crop up
on the shore of the latter island, where they are worked at two points,
known locally as the Ellenabeich Quarries.
The first visitors to Easdale
found the shores strewn with slates quarried and split by the action of the
waves; and from the supply thus provided was taken all that was required for
many years. By the time the shores were cleared of the loose stones the
value of the slate had come to be more fully realised, and to meet the
demand which had arisen quarrying was resorted to. The exposed strata on the
sea-shore were first worked, and the process of quarrying, as handed down by
tradition, was this : At low water wedges of seasoned oak were driven into
the cleavage seams, and when the tide flowed the wedges expanded and
detached the superincumbent rock. That was a slow and uncertain process, and
in course of time was abandoned for blasting by gunpowder. When the seams of
slate had been worked down as far as the tide would allow, the persons
engaged in quarrying began to look upon their occupation as in danger of
extinction, and some of them actually left the island. The trap dykes which
occur in the seams and divide them into compartments had, when reached,
evidently led the quarrymen to conclude that they had got to the limits of
the slate deposits. Those of the workmen who remained on the island
"explored" the ground, and opened a quarry a little distance from the shore.
Hydraulic engineering was but little understood by them, and they were again
cast into a state of despair by an accumulation of surface water in the
quarry. In order to get rid of the water they cut a trench down to the sea
on the level of the ebb-tide line, and by means of that ran off the water
that accumulated between the ebbs, the rising tide being prevented from
getting into the works by a sluice fixed in the channeL The men never
dreamed of being able to carry on their work at a lower point than that
which their drain enabled them to reach; and it is related that, on the
occasion of an unusually low tide, one of the workmen fired a blast which he
boastfully exclaimed was "the lowest that would ever be set off in Easdale."
How much this prediction has come short of verification will be seen further
on. In those early days of the quarries the men were assisted by their wives
and families, the slates being carried from place to place in "creels" on
the backs of the women.
The mode of working the
quarries was revolutionised some time in the course of last century by the
introduction of a pump which was obtained from the wreck of a castaway ship.
As the pump enabled the workmen to keep clown the accumulations of surface-
water, the quarries were sunk beneath the sea-level, and thus the beds of
slate which had been abandoned for ever, as the quarriers thought, were got
out. Finding that the employment of the old pump gave them such a great
advantage, the men next obtained a crank-pump fitted with a fly-wheel—a
machine which was regarded with admiration by the islanders. The slate
strata in the interior of the island were next broken into, and a number of
quarries were opened, for which pumping machinery of an improved kind was
introduced. Among the new appliances was one of Newcomen's atmospheric
engines, which, when it was set to work, excited much wonder among the
workpeople. The engine would appear to have been of very rude construction.
The boiler consisted of a square box of cast iron one inch in thickness, and
the piston was "packed" with leather. As the engine could not be worked
profitably, horse power was substituted in the beginning of this century,
and the introduction of horses for that purpose suggested the substitution
of carts for wheelbarrows in drawing the slates out of the quarries. About
the year 1807 a windmill was erected to work the pump of the principal
quarry, and gave great satisfaction. With a moderate breeze it worked very
effectively, raising the water through a seven- inch pipe from a depth of
fifty feet. The windmill continued in use for twenty years, and the part of
the works with which it was connected still bears the name of the Windmill
Quarry. In 1826 a powerful steam-engine was erected in such a position as to
be available for pumping three quarries. About the same time wharves were
erected for loading ships, and these were found to be a great convenience,
the practice previously being to anchor the vessels in the sound, and carry
the slates to them in boats. Railway inclines were subsequently constructed
in all the quarries. These were at first worked by horses, but for a number
of years past steam-power has been employed.
For a long period prior to
1841 the quarries had been leased to a company in which the successive
representatives of the house of Breadalbane were shareholders. On the expiry
of the lease in the year named, the late marquis determined to work the
quarries on his own account, and continued to do so up till his death in
1862. Many improvements in the mode of working the quarries and in the
condition of the workpeople were effected during the rule of the marquis.
When the quarries were worked by a company, the workmen were paid only once
a-year, and then only according to the quantity of slates that had been
sold, no reckoning being made for the quantity added to stock. The marquis
introduced the system, which still prevails, of paying at short intervals
without reference to sales. When the present marquis came into possession,
he undertook the working of the quarries, but under great disadvantages.
Some of the embankments had given way, and a large portion of the workings
was flooded. In 1866 the marquis let the quarries to a company of the
workmen formed on co-operative principles. Though they obtained the quarries
on highly favourable terms, the company did not succeed; and their affairs
were wound up after a year's trial. The quarries were then acquired by a
company of slate merchants, who have continued to work them with great
vigour. The principal quarry at Ellenabeich is about 450 feet in length, 250
feet in width, and 160 feet in depth. The Windmill Quarry in Easdale is 250
feet in length and breadth, and 120 feet in depth. Two powerful
steam-engines are employed for raising the material and keeping the quarries
clear of water. About 300 men and boys are employed. The number of slates
turned out annually cannot be less than from 7,000,000 to 9,000,000; the
average from 1842 to 1861 was 7,000,000. Taking the value of the slates at
the quarries to be L.2 a thousand, the total produce will, according to the
lowest computation, be worth about L.14,000 a-year. The slates are well
known in the market, and command a ready sale—it being no uncommon thing to
find above a dozen vessels, of an aggregate burthen of over 1500 tons,
waiting their turn for loading.
The population of the village
of Ellenabeich is about 350, and of Easdale 450, all of whom are dependent
upon the quarries. Almost without exception, they are natives of the
locality, and, as is usual in the case of communities remote from the great
centres of population and industry, they are somewhat primitive in their
habits and modes of life, and not quite free from superstitious beliefs. The
men are strong and hardy, and there are no more skilful or daring boatmen on
the British coast. All the adults can read and write, and the rising
generation are well provided with the means of education. Some years ago a
Young Men's Association was established and a library formed. Lectures have
at various times been delivered on scientific and popular subjects. Gaelic
is the language commonly spoken, but most of the people know English to some
extent. It is said that so little are the quarry populations given to
changes of residence, that the removal of a family from one side of the
sound to the other is quite an affecting incident, accompanied by no little
shaking of hands and even shedding of tears. Visitors to the quarries will
have their attention arrested by slabs of stone set up on end near the
houses. These are tombstones which the men have prepared to mark their own
graves. In the course of their operations in the quarry the men occasionally
meet with stout slabs of hard stone, and these are purchased and preserved
as indicated until required.
The Ballachulish Slate
Quarries are situated in the north of Argyle- shire, on the shores of Loch
Leven, about two or three miles from the scene of the tragic massacre of
Glencoe. There are two quarries about half a mile apart, and named
respectively the East Quarry and the West Quarry, the latter being the
smaller of the two, although the first worked in the district. It was opened
in or about the year 1697 by the proprietor, Mr Stewart of Ballachulish,
from whom Sir John Stewart, the late vice-chancellor, is descended. On slate
being discovered, men were procured from Easdale to teach the people of the
district how to quarry and dress it. The West Quarry was worked on a small
scale by Mr Stewart for many years. When the discovery of another vein of
slate, further to the east, was made about the year 1780, the old workings
were stopped for a time, and the East Quarry was opened. Subsequently the
quarries were let for a number of years, first to Mr Stevenson, and
afterwards to Mr Rawse. At the end of Mr Rawse's lease, the proprietor (a
descendant of Mr Stewart, who opened the quarries) took them into his own
possession, and kept them working until, from pecuniary difficulties, the
whole of the Ballachulish estate went into the market, and was purchased, in
1862, by Mr Robert Tennant of Leeds, the present proprietor. Mr Tennant let
the quarries to Mr Alexander Pitcairn, who re-opened the old workings at the
West Quarry in 1863. After much labour has been expended in clearing away
the rubbish left by the previous workers, the West Quarry promises to
produce excellent slate. The East Quarry consists of five working levels,
four rising one above the other from the ground level, and one being sunk
about sixty feet below the surface. The face of the quarry, measuring from
the top of the highest level to the ground line, is about 300 feet; and when
it is taken into consideration that the ground area already quarried
measures from five to six acres, some idea may be formed of the vast amount
of solid rock that has been cut out. The rubbish from the quarry has been
run out into the sea, and forms two great banks. A third bank runs out from
the West Quarry. There are two upper levels and one sunk level in the West
Quarry.
The men who work in the
quarry are divided into "crews" of five, six, or seven. Each crew choose a
certain part of the rock face on one of the levels, and make a kind of
bargain with their employer to work that particular spot for a year,
receiving a sum of money agreed upon for every thousand slates made by them,
so that their wages depend upon the diligence with which they work as well
as upon the quality of the rock they may select. The slates are divided into
four classes—viz., "Duchess," "Countess," "sizable," and "undersized." The
first mentioned are the largest, being twenty-four inches long by twelve
broad; while the " Countess " slates are twenty by ten inches. The other two
classes are smaller. Each crew makes the four kinds, should the quality of
the rock allow it, and receives a different sum per thousand for each sort.
In working, some of the crew stay always in the quarry and blast the rock
face, while the others are out upon the rubbish bank splitting up the blocks
furnished by their comrades. The Ballachulish quarriers are said to be the
best blasters of rock in Scotland. Slung up the face of the perpendicular
rock on a kind of chair attached to a rope fixed at the summit of the level,
the worker hammers away at a sharpened iron rod known as a " jumper." When
he has finished the "bore," a charge of gunpowder is inserted, and fired
with a slow match. So well is everything arranged, that in the memory of the
present generation only one man has been killed by a blast, and in that
exceptional case it was entirely the man's own fault. After the charge is
expended, the workman climbs up the rope, which he fixes round his leg in a
peculiar manner, and placing his feet against the perpendicular face of the
rock, loosens with a crowbar the masses of stone that have been shattered by
the explosion, and sends them crashing down the steep. When a large bore has
to be made, a staging is fixed in the face of the rock, on which three men
work, one holding the "jumper" while the other two strike it with heavy
hammers. After all the loosened rock has been brought down, the quarry
detachment of the crew break the large masses into smaller blocks. Those of
good quality are then selected and sent in waggons out to the bank, where
they are split and dressed. The splitters are very expert at the work. Two
good hands, the one splitting and the other dressing, provided they are
supplied with blocks of a good quality, can easily make from 1800 to 2000
slates a-day in summer. The rubbish is sent away in waggons, to be thrown
over the edge of the bank. At that spot are stationed numbers of boys, from
eight to fourteen years of age, who watch the rubbish projected from the
waggons, and, pouncing upon a block that may have a promising appearance,
split it into slates. The only kind of slates made by the boys are the
undersized. Iron rails or tramways extend in every direction through the
quarry, along which horses draw the waggons laden with slates, rubbish, or
blocks. If placed in a straight line, the railways would measure above six
miles in length. There are several inclines, with machines attached for
letting the waggons down from the upper levels. The largest of these
inclines is 530 feet long, and exceedingly steep. There are also three
steam-engines used—two at the sinking level in the East Quarry, and the
other at the West Quarry.
There is a small harbour
between the two rubbish banks at the 'East Quarry, where the slate vessels
are laden. The number of men and boys employed is about 400, and 15,000,000
slates are turned out annually.
The workmen are all natives
of Ballachulish or of the hamlet of Glencoe, which lies about a mile inland
The only strangers are a few Easdale families who have settled in the place.
One reason why there are so few strangers is, that no adult can learn to
split and dress slates so expertly as those who have been trained to the
work from boyhood. The boys of the place are put to split slates when about
eight years of age, or as soon as they can handle the chisel, slate-knife,
and hammer; and as there is no opportunity of learning other trades, they
stick to the quarry all their lives. The workmen are in general strong and
healthy. The population of Ballachulish is nearly 2000. The people
intermarry among themselves, very few men having wives from places farther
away than Appin. There is no inn or publichouse in the village, and, except
on the day or two succeeding the pay (which is monthly), when a little
drinking occurs, no intoxicated person, is to be seen. Taking into
consideration the extent of the village, and the social condition of the
population, the drinking is nothing to what it is in Lowland mining villages
of the same size, although once or twice the people have been maligned in
the public prints by tourists who happened to pass through the village on a
pay day. Thieving is a thing quite unknown in the locality. A peculiar trait
that the people possess, in common with other Highlanders, is love of their
birth¬place. Most of those who leave the place find their way back again
after a time, even although they may have been better off elsewhere. A great
number of them are still very superstitious, firmly believing in ghosts, in
blue lights appearing on water where persons are to be drowned, and in omens
of various kinds seen before a death. Persons are to be met with who profess
to possess the interesting faculty of "second-sight." A very old custom
still lingers in the village of holding a wake over the body of a friend or
relative deceased. Another strange fashion is that of firing off a small
cannon kept for the purpose when an agreement of marriage has been entered
into between a youthful couple. Education is deficient, on account of the
boys being sent early to work in the quarry. The women are generally better
educated than the men, but with few exceptions all can read the
mother-tongue, and make a pretty fair attempt at English. There are four
churches in the place, viz., the Scotch Episcopal Church (which is the
strongest body), the Established and Free Churches, and a Roman Catholic
Chapel, but there are very few members of the latter persuasion. Schools are
attached to the first three mentioned denominations, but these are poorly
attended. A Mechanics' Institute, of which most of the men are members, has
been erected by Mr Tennant at his own expense.
There are also slate quarries
at Dunkeld, Luss, Aberfoyle, and Craig- lea. Those of Craiglea are the most
important. They are situated on the Logiealmond estate (the property of the
Earl of Mansfield), and are about fourteen miles north-west from Perth.
Craiglea is a hill 1500 feet in height, and the quarries are near the top of
it. For local purposes slate was taken from Craiglea many years ago, and for
upwards of a century the quarries have been worked to supply a more extended
demand. The quarries had, up till three years ago, been let on lease; but
the proprietor then took them into his own care, and under the skilful
management of Mr John White, who for upwards of twenty years was manager of
the Easdale Quarries, they are being opened up on an extensive scale. The
slate vein is of excellent quality, and has this peculiarity, that, while
one portion of it supplies slates of a dark-blue colour, those obtained from
the other portion are of a sea-green hue; but otherwise there is no
appreciable difference between them. |
